enSketch

enSketch^™
	enhanced, engineered Sketch

Download

Download enSketch Presentation

Download enSketch Demo Version

Introduction

  Operating System
    Windows^® XP /200 /NT /Vista /7

  Features

File:
New, Open, Save, Save As, Print, to Clipboard, Append, Exit
Edit:
Undo, Redo, Delete, Move, Copy, Mirror, Array, Rotate, Scale, Purge, Bring to Front, Bring to Back
Modify:
Extend, Trim, Fillet, Break, Offset, Divide, Text, Circle, Arc
Format:
Layer, ForeColors, FillColors, Draw-Style, Draw-Width, Fill-Style, LTScale, Font-Style, Font-Name, Font-Size, Text-Angle
View:
Zoom-Window, Zoom-All, Zoom-Previous,Zoom+, Zoom-, Pan
Snap:
End, Middle, Center, Intersection, Perp, Near, Tangent
Draw:
Line, Scribble, Polyline, Polygon, Rectangle, Circle, Arc, Text, Dimension, Block, Insert
Select:
Select-All, Select-Window, Invert-Select, Special-Select, Crossing-Select, Block-Select
Setting:
Limits, Unit, Precisions, Snap-Size, Dimension-Setting
Tools:
mm-Inch, Unit Convertor, Distance, Intersections of Circles, Section Properties
Civil:
Structural Steel(W, WT, C, L, HSS), Pedestal, Octagon, Welding, Anchor Bolt, Base Plate

Installation

Installation:

Download ensketch.zip to one temporary folder of your computer, extract the files in the zip file to the folder
Double-Clicking setup.exe, enSketch will be automatically installed in your computer at: c:\program files\ensketch\...
Create a shortcut of ensketch.exe on desktop or double-click ensketch.exe

  Printing Setup for enSketch:

        Please install and register Microsoft^® supporting file in your computer: vbprndlg.exe

                Preferred print size: letter and 11x17.

  Register DAO350.dll:

        If you couldn't use the databases for structural steel shapes, please register DAO350.dll in your computer as following:

copy DAO350.dll to the folder, which is typically in the System32 directory under the Windows or the Winnt directory.
Click Start, and then click Run.
Type the following, and then click OK: RegSvr32 C:\Windows\System32\dao350.dll

    You receive a message that the DLL successfully registered.

  Print enSketch drawing to PDF files:

        please go to the website: CutePDF, and download the free software, you can print enSkech drawings to PDF files.

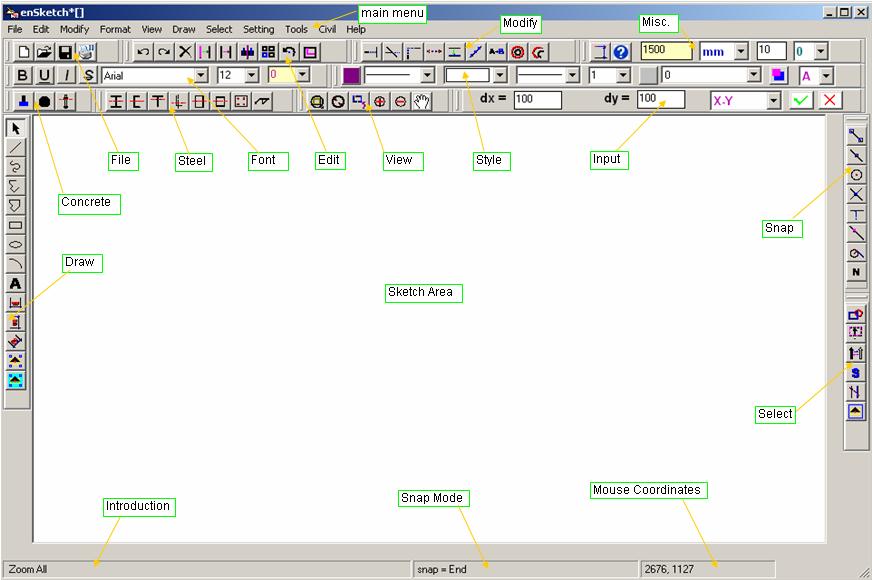

Overview

Order

For questions and license, please contact:	License: One license fee: CAD$ 298.00 or equivalent Email: webcivil.setford@gmail.com Address: Setford Consulting & Technology Ltd. PO BOX 164 #16, Midlake Blvd. SE Calgary, AB. Canada, T2X 2X7
Pay through PayPal:
How to install full version:	Install demo version of enSketch in your computer, before you pay it, please confirm that it runs in your computer. Download getHD.exe from getHD, run it; click the button Apply, you can get harddrive serial number of your computer. Email the HD Serial Number (8 characters) to us, this is the licensing number for you. You can have two computers to be licensed. After we get your payment and HD serial numbers of computers, we will email you the full version ensketch.exe, you should replace ensketch.exe of old demo version with this full version.
